The MWE897 IP66 3-Sided Outdoor Advertising Display | Optical Bonded Weatherproof Totem | High-Impact Floor Standing Signage is a professional digital signage solution from MARVEL Technology (MWE), part of the Free Standing / Outdoor Digital Signage product line. This display features weatherproof protection, floor-standing design, engineered for outdoor environments where visibility and durability matter. Sizes, brightness, and configurations can be customized for specific project requirements. Contact MARVEL Technology for full specifications and B2B pricing.

Descripción

Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE Tótem Exterior MWE897 de 3 Caras IP66 | Unión Óptica | MWE

PREGUNTAS FRECUENTES

Parameter Especificación
Número de modelo MWE897 3 Sided
LCD Panel Size 43 inch*3
Native Resolution 1920 x 1080
Backlight Type Direct-lit LED
Luminosidad 2500 nits
Light Lifetime 50000 hours
Relación de contraste 1200 : 1 (Typ.)
Display Color 16.7M (8-bit)
Ángulo de visión 89/89/89/89 (Typ.)
Power Input Voltage AC 100-240V, 50/60Hz
Rated Voltage AC 110V / 220V
Max Power Consumption 160W
Bezel Width (T/B/L/R) 48 / 48 / 48 / 48 mm
Cabinet Color Grey (RAL7016)
Outline Dimensions 626 x 1038 x 115 mm
Net Weight 40 kg
Orientation Portrait / Landscape
Tempered Glass Antirreflejo (AG)
Bonding Process Unión óptica
CPU RK3568, Quad-core
RAM 2GB
ROM 32GB
System Version Android 11
Language English (Default)
Wi-Fi 2.4G / 5G Dual-band Wi-Fi
4G Support Optional / Supported
Input Ports HDMI x1, USB x2, RJ45 x1, Power supply port x1
IR Control Supported
Light Sensor Supported (Auto-brightness)
Speaker 8Ω 5W x 2
Temperatura de funcionamiento -20℃ ~ 45℃
Temperatura de almacenamiento -25℃ ~ 60℃
Humidity 10% ~ 100% RH (Non-condensing)
Protection Rating IP66 / IK10
OMC Functions Monitoring: Smoke, Humidity, Temperature, Wind Speed

DETALLE

Conclusiones clave

  • Triple-sided 43″ x3 display for 270-degree visibility from a single totem.
  • 2500 nits per panel sunlight-readable, IP66 / IK10 weatherproof.
  • Optical bonding + anti-glare glass for direct-sun legibility on all three faces.
  • OEM / ODM supported – 18+ years of outdoor display manufacturing.

Visión general

The MWE897 3-Sided is an optical-bonded, weatherproof outdoor advertising totem from MWE (Marvel Technology). Three 43″ high-brightness panels are mounted on a single free-standing cabinet to deliver high-impact, 270-degree messaging for floor-standing signage in outdoor environments. It shares the MWE897 platform – RK3568 quad-core Android 11 board, 2500 nits brightness and MWE OMC cloud management.

Key Specifications (reference configuration)

Parameter Especificación
Número de modelo MWE897 3 Sided
LCD Panel Size 43 inch x 3 (triple-sided)
Native Resolution 1920 x 1080
Backlight Type Direct-lit LED
Luminosidad 2500 nits (sunlight readable)
Light Lifetime 50000 hours
Relación de contraste 1200 : 1 (Typ.)
Display Color 16.7M (8-bit)
Ángulo de visión 89/89/89/89 (Typ.)
Power Input Voltage AC 100-240V, 50/60Hz
Rated Voltage AC 110V / 220V
Max Power Consumption 160W
Bezel Width (T/B/L/R) 48 / 48 / 48 / 48 mm
Cabinet Color Grey (RAL7016)
Outline Dimensions 626 x 1038 x 115 mm
Net Weight 40 kg
Orientation Portrait / Landscape
Tempered Glass Antirreflejo (AG)
Bonding Process Unión óptica
CPU RK3568, Quad-core
RAM 2GB
ROM 32GB
System Version Android 11
Language English (Default)
Wi-Fi 2.4G / 5G Dual-band Wi-Fi
4G Support Optional / Supported
Input Ports HDMI x1, USB x2, RJ45 x1, Power port x1
IR Control Supported
Light Sensor Supported (Auto-brightness)
Speaker 8 OHM 5W x 2
Temperatura de funcionamiento -20 C to 45 C
Temperatura de almacenamiento -25 C to 60 C
Humidity 10% – 100% RH (Non-condensing)
Protection Rating IP66 / IK10
OMC Functions Monitoring: Smoke, Humidity, Temperature, Wind Speed

Outdoor Durability

  • IP66 / IK10 weatherproof enclosure with tempered anti-glare glass across all three faces.
  • Optical bonding eliminates internal reflection for direct-sun legibility.
  • Auto-brightness via built-in light sensor on each panel.
  • Operating temperature: -20 C to 45 C; humidity 10%-100% RH (non-condensing).

MWE OMC Cloud Management

Every MWE897 ships with the MWE OMC (Outdoor Maintenance & Management Cloud) system for remote operations: embedded sensors monitor smoke, humidity, temperature and wind speed; status and fault alarming are reported to the cloud; remote diagnostics and group-based performance checks are supported. MWE can also help customers deploy their own server. Cloud services: OMC at omc.marveltechgroup.com; CMS at inf.marveltechgroup.com.

Control & Network Interfaces

  • RJ45, dual-band Wi-Fi; 4G optional.
  • HDMI x1, USB x2, IR control per panel group.
  • 8 OHM 5W x2 speakers.
  • RS232 / TCP-IP control with MWE API support.

Available Sizes & Configurations

The MWE897 3-Sided totem is configured as three 43″ panels on a single floor-standing cabinet, portrait or landscape orientation. Cabinet color Grey (RAL7016); other colors available on request.

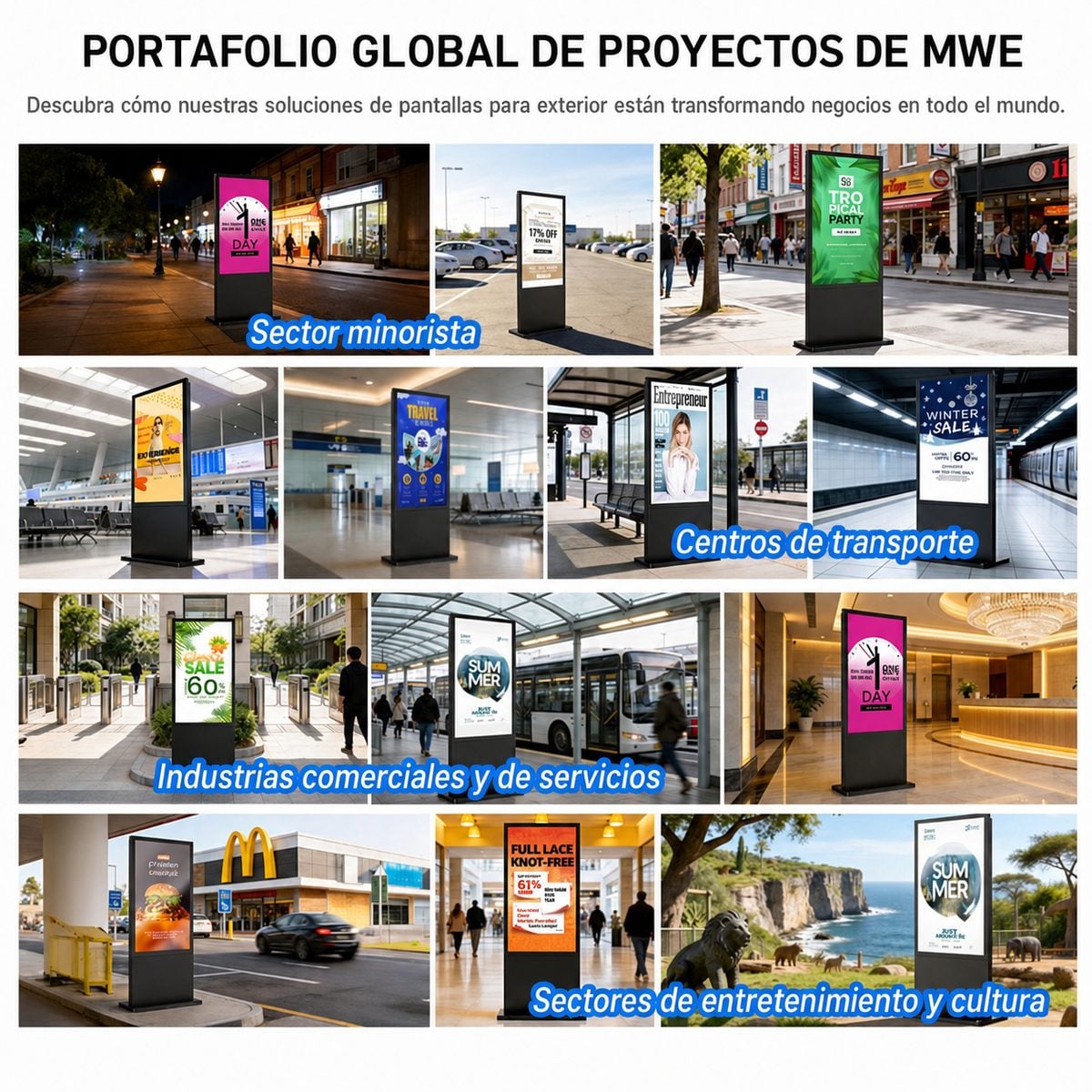

Application Scenarios

  • High-street retail and shopping centers
  • Transport hubs and airports
  • Outdoor events and exhibitions
  • DOOH advertising at intersections and plazas

OEM / ODM Capabilities

MWE (Marvel Technology) is an outdoor and commercial LCD display manufacturer with 18+ years of experience, supporting full OEM and ODM customization – enclosure color, logo, mounting method, brightness level and CMS integration. Lead time and MOQ are confirmed per project.

Build & Certifications

  • Enclosure: galvanized steel sheet, aluminum and stainless steel optional.
  • Surface: spraying / frosted aluminum; colors black / white / silver or customized.
  • Optional functions: anti-dazzle, anti-glare, anti-UV, anti-IR, waterproof, dust-proof, vandal-proof.
  • Compliance: MWE outdoor displays are typically shipped with CE / FCC / RoHS; confirm exact marks for your market.
  • Packaging: carton, wooden case, flight case (optional).
